HSM14 High Speed Non Ferrous Saw
The HSM14 high-speed non-ferrous saw delivers fast, accurate saw for cutting aluminum, copper, and other non-ferrous metals—perfect for fabrication shops and production lines demanding clean, burr-free results.
14 Inch High Speed Non Ferrous Saw – HSM14
$9,500.00
SKU: HSM14
Categories: 14 Inch High Speed Semi-Automatic Saw - HSM14, High Speed Saws, INDUSTRIAL HIGH SPEED NON-FERROUS SAWS
Tags: 14 INCH HIGH SPEED MITRE SAW, 14 INCH HIGH SPEED NON-FERROUS MITRE SAW, 14 INCH MITRE SAW, 14 INCH NON-FERROUS MITRE SAW, 14 inch saw, aluminum, HIGH SPEED NON-FERROUS MITRE SAW, high speed saw, HSM14 14 INCH HIGH SPEED NON-FERROUS MITRE SAW, NON-FERROUS MITRE SAW
Description
If you’re looking for a powerful, precision-engineered solution for cutting non-ferrous materials, the Kalamazoo Industries HSM14 stands out as a top performer. Built for demanding industrial environments, this saw is specifically designed to handle non-ferrous blades for cutting aluminum and other non-ferrous metals with exceptional consistency and control.
Whether you’re working with extrusions, tubing, or need a dependable saw for cutting copper pipe, the HSM14 delivers accurate cutting results every time. Its rugged construction and compatibility with a non-ferrous chop saw blade make it an ideal choice for fabrication shops, manufacturing lines, and any operation that demands clean, burr-free cuts.
Don’t settle for less—upgrade your cutting capabilities with the HSM14 and experience the difference in speed, precision, and reliability.
Contact Kalamazoo Industries today to request a quote.
- Precision Cutting for Non-Ferrous Metals: Engineered specifically for cutting aluminum, brass, and other non-ferrous materials with high accuracy and minimal burrs.
- High-Speed Performance: Equipped with a 5HP motor and 4400 RPM spindle speed, the HSM14 delivers fast, clean cuts ideal for high-throughput environments.

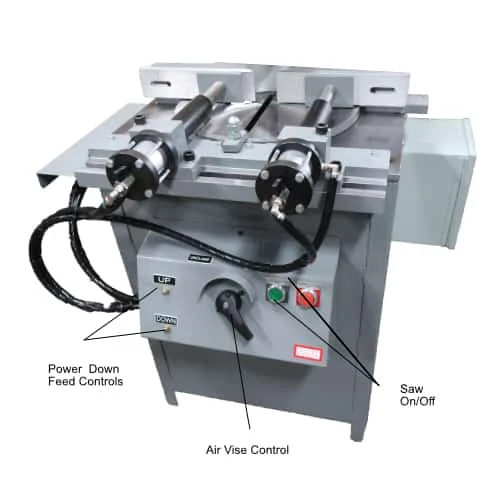

- Semi-Automatic Operation: Features a power down-feed system (air over oil, 0–12 FPM) for consistent, controlled cutting—perfect for production line applications.
- Dual Mitre Capability Offers 45° mitre cuts left and right, making it versatile for fabrication shops, metalworking, and custom extrusion cutting.
- Heavy-Duty Construction: Built with a cast iron frame, sealed ball bearings, and dual V-belt drive for long-lasting durability in industrial environments.
- Double Air Vises Includes dual air vises with a 6″ opening for secure clamping of round or square stock—ideal for precision fabrication.
- Large Cutting Capacity: Handles up to 4.5″ pipe or square at 90° and 4″ at 45°, making it suitable for a wide range of non-ferrous cutting applications.
- Flexible Power Options: Available in 220V single-phase or 220/440/575V three-phase, supporting a variety of shop setups.
- Ansi Compliant Safety Features: Comes with a fully enclosed blade guard and safety interlocks to meet workplace safety standards.
- Made in America: Proudly manufactured in the USA by Kalamazoo Industries, ensuring high-quality craftsmanship and readily available replacement parts.
- Industry Versatility: Trusted in sectors like aerospace, automotive, energy, metal fabrication, and knife manufacturing.
Motor & Power
- 5 HP, 3-phase, 3450 RPM industrial-grade motor
- Electrical specifications:
- Single-phase: 230V 19.5 amps
- Three-phase: 230V at 12 amps / 460V at 6 amps
- Magnetic on/off push button switch
Cutting Performance
- Spindle speed: 4,400 RPM for clean, high-precision cuts
- 1″ spindle arbor for compatibility with standard industrial blades
- Power down feed: air-over-oil system with adjustable feed rate from 0–12 FPM
- Semi-automatic operation; requires 40–50 PSI air pressure
- Double V-belt drive for smooth, reliable power transmission
Construction & Safety
- Heavy-duty all-steel construction for long-term durability
- Ansi-compliant clamshell blade guard for enhanced operator safety
- Double air vises open up to 6″ with movement in both left/right and front/back directions
Versatility & Capacity
- Miters left and right up to 45 degrees
- At 90 degrees:
- Up to 4.5″ diameter pipe
- Up to 4.5″ square stock
- At 45 degrees (mitre left or right):
- Up to 4″ diameter pipe
- Up to 4″ square stock
- Compatible with a wide range of blades (not included)
Shipping & Dimensions
- Dimensions: 44″ L x 40″ W x 65″ H
- Shipping weight: approximately 750 lbs.
- Note: Shipping weights and dimensions are subject to change
- Ideal for cutting aluminum extrusions, profiles, and structural components
- Designed for non-ferrous blades used in cutting aluminum and other non-ferrous metals
- Excellent for cutting copper pipe, brass tubing, and soft metal rods
- Perfect for fabrication shops needing fast, accurate cutting with clean, burr-free edges
- A reliable solution for manufacturing lines requiring high-speed, repeatable cuts
- Compatible with non-ferrous chop saw blades for precision and durability
- Suitable for tubing and profile cutting in HVAC, electrical, and framing applications
- Performs well in semi-automatic cutting setups with air-over-oil feed control
- Great for use in aerospace, automotive, and architectural metalwork
- Supports mitre cutting left and right up to 45° for angled or custom cuts
- Availability: Standard Parts in stock ship within 1 to 2 business days.
- Purchase: Click here to buy your replacement parts.
Additional information
| Weight | 750 lbs |
|---|---|
| Dimensions | 50 × 50 × 65 in |
| Phase and Voltage | 3PH 230V, 3PH 480V |
