14 Inch Abrasive Saw with Stand – K12-14SS

Price range: $2,850.00 through $3,150.00

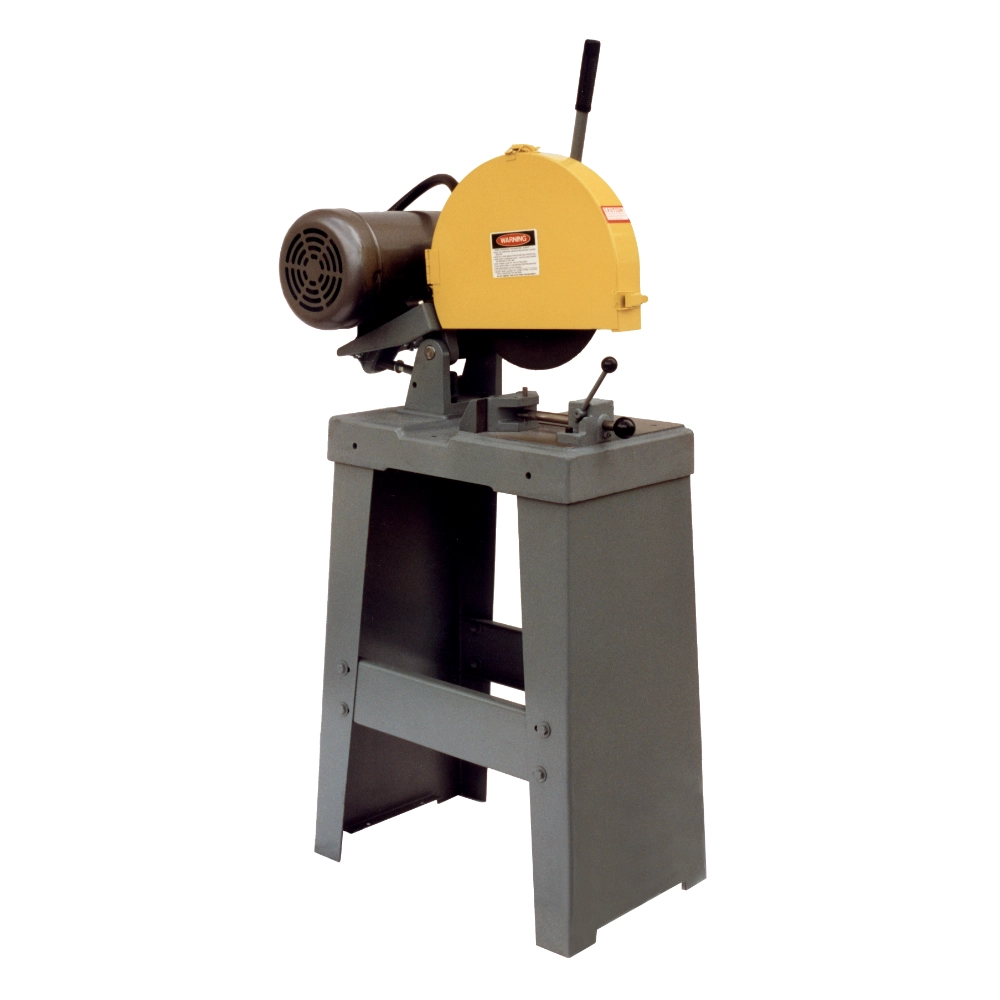

Kalamazoo K12-14SS – 14 Inch Abrasive Chop Saw with Stand

The Kalamazoo K12-14SS is a 14 inch abrasive chop saw with stand, designed for cutting steel, pipe, and solid steel. It accommodates a 14-inch abrasive wheels for cutting metal, and is known for its fast and clean cuts.

SKU: K12-14SS Categories: , , Tags: , , , , , , , , ,

Description

14 Inch Abrasive Saw with Stand - K12-14SS

The Kalamazoo K12-14SS is a 14 inch industrial abrasive chop saw designed for cutting various ferrous metals like steel, pipe, and tubing. It features a powerful 5HP motor, available in 1-phase or 3-phase configurations, and can accommodate 12 inch or 14 inch abrasive blades. This chop saw blade for cutting metal is built with a sturdy cast iron base, trunnion, and arm for durability and includes a steel stand for added convenience.

Motor:

  • 5 HP 1 PH 230V or 5 HP 3 PH 230V or 460V (specify when ordering)
  • 3 PH amp draws: 230V 12 amps, 460V 6 amps
  • 1 PH amp draw: 19.5 amps

Cutting Capacity:

  • 14″ abrasive wheels only
  • 2.5″ solid round stock
  • Up to 3″ pipe (based on mild steel)
  • Note: Abrasive wheel not included

Construction:

  • Extra-heavy cast iron base, trunnion, and saw arm
  • Sealed spindle ball bearings
  • Steel-hinged wheel guard

Features:

  • Magnetic on/off push button switch
  • 1″ wheel arbor (1.25″ spindle arbor available)
  • 4400 spindle RPM
  • Dual V-belt drive with replaceable guard
  • Adjustable backstop
  • Replaceable v-belt guard, saw handle, vise, and vise jaws
  • Heavy duty steel stand

Shipping:

  • Shipping dimensions: L 40″ x W 28″ x H 36″
  • Shipping weight: 300 lbs
  • Shipping weight and dimensions are subject to change.

Country of Origin

  • Made In USA

Mild Steel:

  • Low-carbon steel: The most common and versatile type of steel.
  • Structural steel: Used for building frames, beams, etc.
  • Steel plate: Flat sheets of steel in various thicknesses.
  • Angles, channels, and other steel shapes: Commonly used in construction and fabrication.

Other Steels:

  • Stainless Steel: Offers more corrosion resistance; some grades may be harder to cut.
  • Alloy Steels: Steel mixed with other elements (chromium, nickel, etc.) for enhanced properties depending on the specific alloy.
  • Tool Steels: Designed for hardness and wear resistance, often used in cutting tools.

Important Notes:

  • Material Thickness: The K12-14B has maximum thickness limits for each type of steel. Refer to its specifications for details.
  • Abrasive Wheel Matters: The type of abrasive wheel used impacts the saw’s ability to cut harder materials. Consult Kalamazoo Industries for the best wheel recommendations for your specific needs.

  • High Cutting Power: Equipped with a robust 5HP motor, it delivers exceptional cutting performance for various ferrous metals.
  • Versatile Blade Options: Can accommodate both 12-inch and 14-inch abrasive blades, providing flexibility for different cutting tasks.
  • Durable Build: Constructed with a sturdy cast iron base, trunnion, and arm, ensuring long-lasting durability and stability.
  • User-Friendly Design: Features simple controls and a well-designed interface, making it easy to operate for both professionals and beginners.
  • Enhanced Safety: Includes a spark guard and vise clamp to protect users during operation.
  • Convenient Stand: Comes with a steel stand, offering a comfortable working height and a stable base for optimal cutting control.
  • Efficient Performance: Known for its fast and clean cuts, making it ideal for demanding and high-volume cutting tasks.
  • Wide Range of Applications: Suitable for cutting steel, pipe, solid steel, and other ferrous metals, making it a versatile tool for various industries.

  • Availability: Standard Parts in stock ship within 1 to 2 business days.
  • Purchase: Click here to buy your replacement parts.

Additional information

Weight 300 lbs
Dimensions 40 × 28 × 36 in
Phase and Voltage

1PH 230V, 3PH 230V, 3PH 460V
