20 Inch Steel Cutting Saw – K20SSF

K20SSF 20 Inch Abrasive Metal Cutting Saw, 20 Inch Steel Cutting Saw - K20SSF, Metal Cutting Chop Saw
K20SSF work table height metal cutting saw, steel cutting saw
metal cutting saw, 20 inch abrasive metal cutting saw
Foot operated chain vise for the 16 up to 18 inch chop saw, 18 Inch Abrasive Chop Saw

20 Inch Steel Cutting Saw – K20SSF

Price range: $4,850.00 through $6,200.00

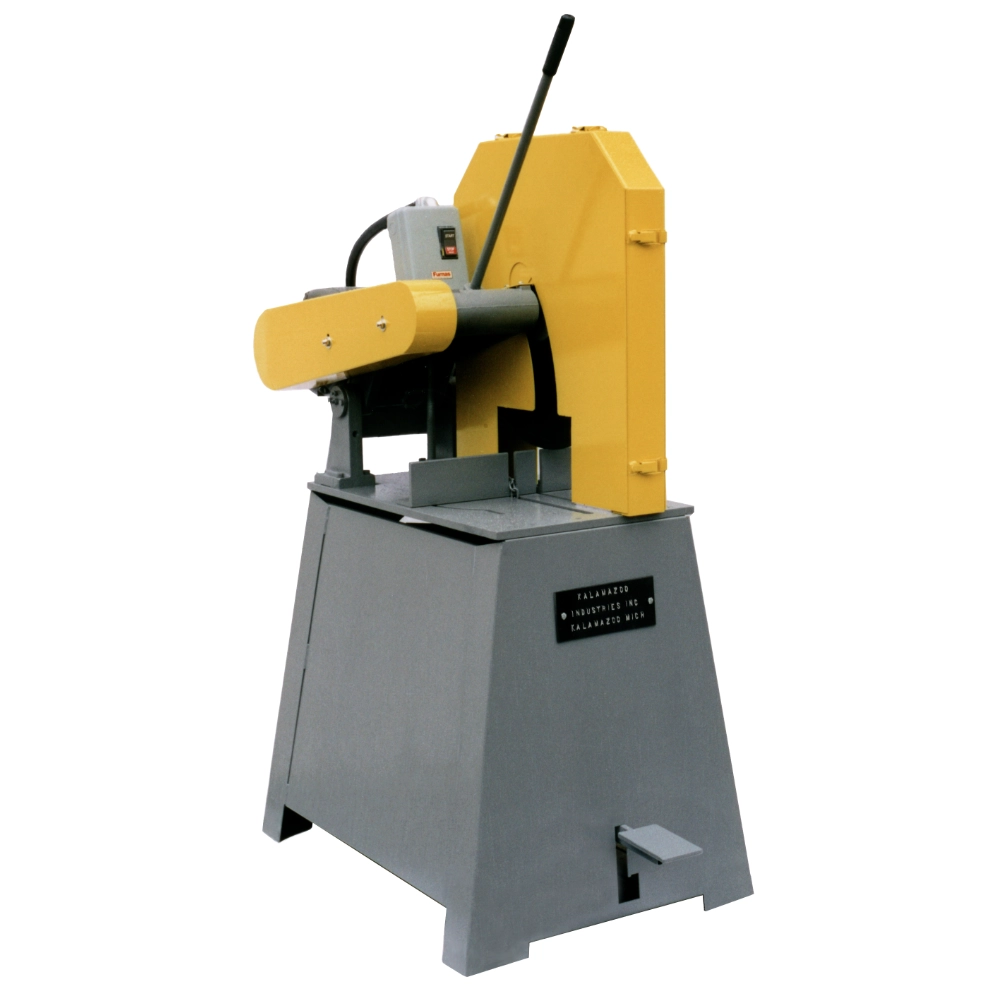

K20SSF 20 Inch Abrasive Metal Cutting Saw

Cut metal with ease using the K20SSF industrial chop saw, featuring a 20″ abrasive cutting blade and a powerful motor that can handle up to 4″ solid steel or 6″ pipe (mild steel). Upgrade to the 20HP motor for cutting harder steels.



SKU: K20SSF Categories: , , , Tags: , , , , , , , ,

Description

20 Inch Steel Cutting Saw - K20SSF

The Kalamazoo K20SSF 20 Inch Abrasive Metal Cutting Saw is a powerhouse designed for industrial applications. Featuring a 20″ abrasive cutting blade, it effortlessly cuts through 4” solid steel and up to 6” pipe, making it perfect for tough materials like angle iron, flat bar, and tubing. As one of the best straight saw options available, this industrial shop saw is equipped with a 15HP motor, upgradeable to a 20HP motor, ensuring fast and efficient cuts with reliable performance. Built for heavy-duty use, the K20SSF steel saw guarantees efficiency, significantly reducing cutting time for demanding metal fabrication tasks.

Motor Options

  • Standard Motor: 15HP, 3-phase, 230V or 460V (specify voltage)
  • Optional Upgrade: 20HP, 3-phase, 230V or 460V (specify voltage)
  • TEFC Saw Duty Motor: Totally Enclosed Fan Cooled for enhanced durability

Amp Draw

  • 15HP Motor:
    • 230V: 36.4 amps
    • 460V: 18.2 amps
  • 20HP Motor:
    • 230V: 46 amps
    • 460V: 23 amps

Key Features

  • Magnetic On/Off Push Button Switch: Ensures operator safety and easy operation
  • Four V-Belts: Provides reliable power transmission
  • 20 Inch Abrasive Cutoff Wheel: Ideal for cutting through tough materials
  • Adjustable Down Stop: Allows for precise cutting depth control
  • 1″ Wheel Arbor: Compatible with standard abrasive wheels
  • Rugged Cast Iron Trunnion and Arm: Ensures stability and long-lasting performance
  • Super Rigid and Accurate: Designed for precision cutting
  • Heavy-Duty Steel Guards: Provides protection and durability
  • Steel Spark Chute: Directs sparks away from the operator
  • Fast, Foot-Operated Chain Vise: Secures materials quickly and efficiently
  • Sealed Ball Bearings: Reduces maintenance and increases lifespan
  • Steel Saw Base with Removable Steel Dust Chute: Facilitates easy cleanup

Table Specifications

  • Table Dimensions: 18″ wide x 30″ deep
  • Material Capacity: Cuts up to 4″ solid steel and 6″ shapes (based on mild steel)
  • Spindle Speed: 2500 RPM

Optional Accessories

  • Power Down Feed (PH-20): Requires shop air for operation
  • Dust Collector (DCV-1): Keeps the work area clean
  • 6″ Vacuum Port Attachment: For enhanced dust collection
  • 5′ Conveyor Sections: Part numbers KC5, KCL legs for material handling
  • AV-20 Air Vise: Requires shop air for operation; work table is pre-drilled and counter-sunk for one vise

Shipping Information

  • Dimensions: L 59″ x W 40″ x H 68″
  • Shipping Weight:
    • K20SSF-15HP: 650 lbs
    • K20SSF-20HP: 675 lbs
  • Shipping weight and dimensions are subject to change

Country of Origin

  • Made in USA: Ensuring high-quality craftsmanship

Cutting Solid Steel

  • Effortlessly cuts through up to 4″ solid steel, ideal for heavy-duty applications.

Cutting Steel Pipe

  • Handles up to 6″ steel pipe (mild steel) with precision and ease.

Cutting Angle Iron

  • Perfect for slicing through angle iron used in construction and fabrication.

Cutting Flat Bar

  • Efficiently cuts flat bar stock, ensuring clean and accurate cuts.

Cutting Tubing

  • Ideal for cutting various types of tubing, including steel and other metals.

Cutting Steel Shapes

  • Capable of cutting a variety of steel shapes, enhancing versatility in metal fabrication tasks.

Precision Cutting

  • Ensures precise cuts at a 90-degree angle, suitable for tasks requiring high accuracy.

Heavy-Duty Material Cutting

  • Designed to handle tough, heavy-duty materials with its powerful motor and robust construction.

Industrial and Commercial Cutting

  • Suitable for a wide range of industrial and commercial cutting applications, providing reliable performance in demanding environments.

Reducing Cutting Time

  • Significantly reduces cutting time for demanding metal fabrication tasks, improving overall efficiency.

Handling Abrasive Cutoff Wheels

  • Compatible with 20″ abrasive cutoff wheels, offering versatility in cutting different materials and thicknesses.

Secure Clamping of Materials

  • Features a foot-operated chain vise with V-block for secure clamping of odd-shaped materials during cutting.

Enhanced Safety Cutting

  • Includes a magnetic on/off switch and heavy-duty steel guards for operator safety.

Versatile Cutting Capabilities

  • Effortlessly cuts through solid steel, steel pipe, angle iron, flat bar, tubing, and various steel shapes, making it suitable for a wide range of applications.

Powerful Performance

  • Equipped with a 15HP motor, upgradeable to a 20HP motor, ensuring fast and efficient cuts with reliable performance.

Precision Cutting

  • Ensures precise cuts at a 90-degree angle, ideal for tasks requiring high accuracy.

Durable Construction

  • Built with rugged cast iron trunnion and arm, providing stability and long-lasting durability.

Enhanced Safety Features

  • Includes a magnetic on/off switch and heavy-duty steel guards to protect the operator during use.

Efficient Material Handling

  • Features a foot-operated chain vise with V-block for secure clamping of odd-shaped materials, enhancing cutting efficiency.

Reduced Cutting Time

  • Significantly reduces cutting time for demanding metal fabrication tasks, improving overall productivity.

User-Friendly Design

  • The adjustable down stop and sealed ball bearings ensure smooth operation and ease of use.

High Cutting Capacity

  • Capable of handling up to 4″ solid steel and 6″ pipe (mild steel), making it ideal for heavy-duty applications.

Optional Accessories

  • Offers a range of optional accessories, including work stops, power down feed, dust collector, vacuum port attachment, conveyor sections, and air vise, to enhance functionality and versatility.

Made in USA

  • Ensures high-quality craftsmanship and reliable performance.

  • Availability: Standard Parts in stock ship within 1 to 2 business days.
  • Purchase: Click here to buy your 15HP unit replacement parts.
  • Purchase: Click here to buy your 20HP replacement parts.

Additional information

Weight N/A
Dimensions N/A
Horse Power, Phase and Voltage

15HP 3PH 230V, 15HP 3PH 460V, 15HP 3PH 575V, 20HP 3PH 230V, 20HP 3PH 460V
