KS690HV-5 Grinder with Dust Collector

$8,695.00

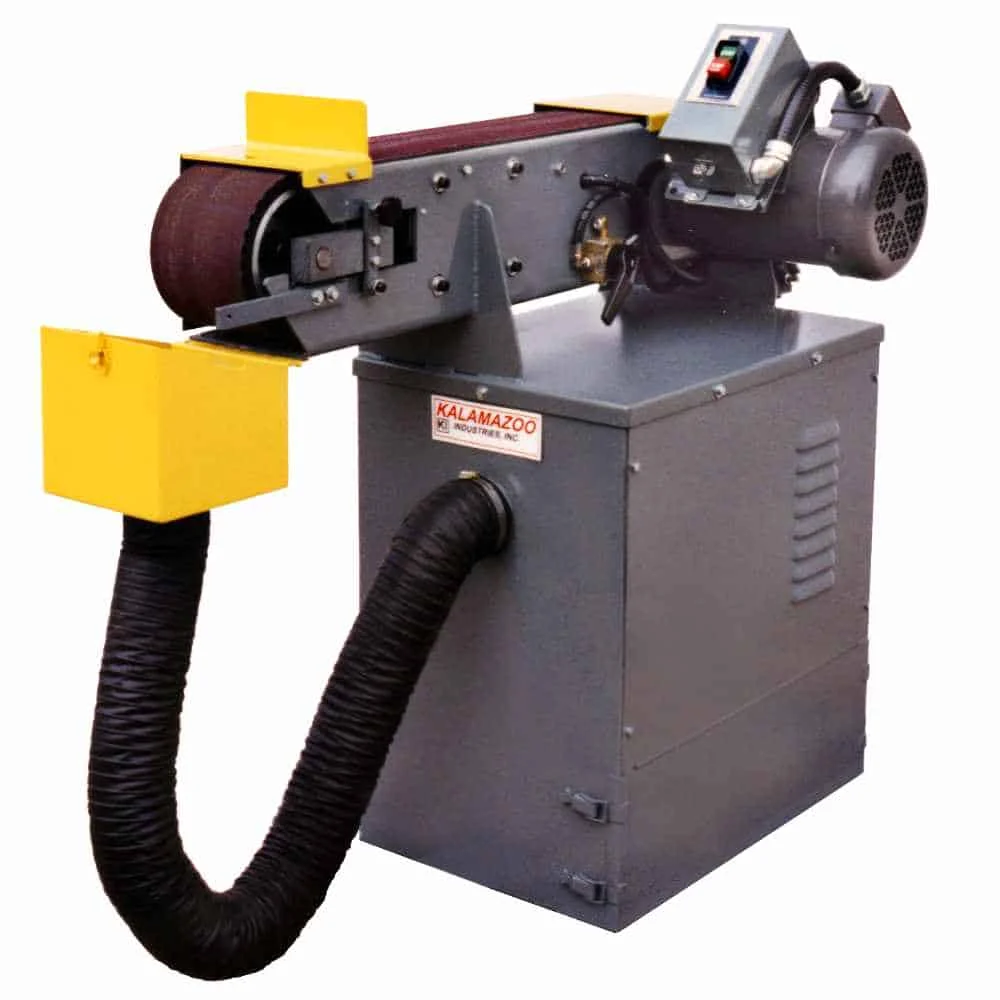

KS690HV-5 Grinder with Dust Collector

Built for fabrication and manufacturing, the KS690HV-5 is a heavy-duty grinder with dust collection that speeds surface finishing, tightens weld preparation, and cleans up plasma cut edges. Ideal for production work and farm machinery maintenance.

SKU: KS690HV-5 Categories: , , , Tags: , , , , , , , ,

Description

KS690HV-5 Grinder with Dust Extractor System

In fabrication and manufacturing environments where throughput and cleanliness matter, the KS690HV-5 delivers industrial 6″ × 90″ grinding performance with integrated dust control—giving your team a reliable grinder with dust extraction that keeps the workspace safer while maintaining consistent results shift after shift.
From smoothing and blending for premium surface finishing to dialing in tight weld preparation, this machine is built to handle daily production demands and tough rework alike. It also makes short work of knocking down sharp edges and dross on plasma cut parts, helping you move components to fit-up, paint, or assembly with less downtime.
For shops that support heavy equipment and repairs, it’s a durable solution that withstands real-world farm machinery maintenance. Get the KS690HV-5 on your floor—request a quote today.

Built for high-throughput fabrication and manufacturing environments, the KS690HV-5 combines aggressive stock removal with cleaner, safer operation—so your team can move faster from raw part to finished component. With a 6″ × 90″ belt, a robust 5 HP drive, and high belt speed, it’s engineered to maintain consistent results shift after shift. The integrated dust collection helps keep grinding debris contained where it belongs.
Key benefits for production shops
  • Higher throughput on tough work: the 5 HP motor and ~6900 SFPM belt speed accelerate removal rates for edgework, beveling, and blending—especially valuable ahead of weld preparation and post-weld cleanup.
  • Cleaner grinding with less downtime: integrated dust collection (notably cited at 400 CFM) supports a tidier work area and reduces time spent on cleanup between jobs—ideal when running a dedicated grinder with dust extraction in a fabrication cell.
  • More control over finish quality: the serrated contact wheel and long platen support both heavy grinding and repeatable surface finishing, helping standardize results across parts and operators.
  • Shop-floor durability: all-steel construction and production-oriented hardware are designed for continuous use in demanding environments, including repair workflows and farm machinery maintenance.
  • Faster post-cut cleanup: quickly remove dross and refine edges after plasma cut operations to improve fit-up, reduce rework, and speed parts into assembly.
If you want a production-grade grinder that boosts throughput while keeping your workspace cleaner, spec the KS690HV-5 for your finishing station and request a quote today.

For fabrication and manufacturing teams that need fast, repeatable metal removal without compromising the shop’s visibility, the KS690HV-5 is designed to stay productive on the floor—pairing a high-output 6″ × 90″ platform with integrated collection to minimize cleanup and keep work moving.
Top Use Cases
  • Weld prep on plate, tube, and structural—knocking down highs, blending starts/stops, and truing edges before fit-up.
  • Cleaning up plasma cut parts—removing dross, rounding sharp edges, and correcting minor kerf taper before weld or paint.
  • High-throughput surface finishing—from mill-scale removal and conditioning to pre-coat/pre-powdercoat scratch patterns.
  • Converting a grinding station into a grinder with dust extraction—capturing metal fines at the source to support safer, cleaner production.
  • Farm machinery maintenance and repair—restoring worn edges, dressing torch-cut patches, and prepping cracked components for re-weld.

KS690HV-5 Grinder with Dust Extraction System

Feature Details
Motor & Power
  • 5 HP, 3 PH Belt Sander (220/440V, specify voltage)
Belt Size
  • 6″ x 90″ (compatible with all belt types)
Contact Wheel

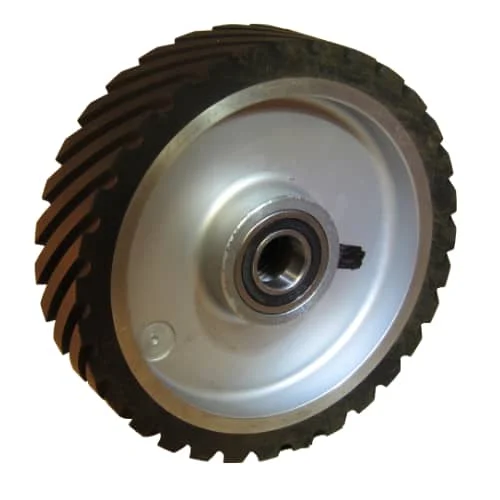

  • 8″ OD x 6″ W serrated contact wheel, 70 duro
Belt Speed
  • 6900 SFPM
Bearings
  • Sealed ball bearings
Platen
  • 24-1/2″ long, reversible and replaceable steel platen
Switches
  • Grinder switch: Magnetic on/off switch
  • Metal dust collector switch: Rotary on/off switch
Metal Dust & Debris Collector
  • Mounted on DCV-6 steel dust collector system
  • 400 CFM with reusable steel mesh filter (located in base)
  • Hinged steel access door for easy debris cleanout (vacuum base)
  • Steel debris chute with 4″ vacuum port
Additional Features
  • Adjustable steel worktable
  • Removable steel belt guard
  • Work stop located on top of the machine
  • Fixed belt grinder head
  • Spring belt tensioning with lever for quick extension or retraction of grinder yoke
  • Steel side-hinged access guard
  • All-steel construction
Equipment Options
  • Aluminum oxide abrasive belts available in 50, 80, and 100 grits
  • VFD: Variable Frequency Drive
Shipping
  • Dimensions: L 57″ x W 45″ x H 54″
  • Weight: 600 lbs.
  • Shipping weight and dimensions are subject to change
Country of Origin
  • Made in the USA

KS690HV-5: Heavy-Duty Grinding + Dust Control

Grind aggressively. Capture metal dust at the source. Maintain consistent, shop-ready finishes.

Call (269) 382-2050 or Request a Quote today.

Made in the USA | Built for Fabrication | Proven in Metalworking Shops

Additional information

Weight 600 lbs
Dimensions 59 × 45 × 56 in
Voltage

230V, 460V
